Introduction to Vacuum Feedthrough Electrical Connectors

Vacuum feedthrough electrical connectors are specialized components designed to transmit electrical signals or power between environments with differing pressure conditions, typically from atmospheric pressure to a vacuum or vice versa. These devices are critical in applications where maintaining vacuum integrity while enabling electrical connectivity is essential. They are engineered to prevent gas leakage, withstand extreme temperatures, and resist contamination, making them indispensable in industries such as semiconductor manufacturing, aerospace, scientific research, and medical equipment. The unique challenge they address lies in their dual function: ensuring reliable electrical performance without compromising the sealed vacuum environment.

Design and Construction Principles

The design of vacuum feedthrough electrical connectors revolves around achieving hermetic sealing and electrical isolation. Most connectors feature a metal or ceramic body that forms the primary vacuum barrier. Conductors, often made of high-purity copper, stainless steel, or specialized alloys, pass through this body while being insulated using materials like alumina, glass, or polymers. The choice of materials depends on factors such as thermal expansion coefficients, outgassing properties, and compatibility with vacuum conditions. Advanced designs incorporate multi-pin configurations, coaxial lines, or hybrid feedthroughs that combine electrical, fluid, and optical pathways. To ensure longevity, the interfaces between materials are meticulously engineered to minimize microleaks and withstand mechanical stress during thermal cycling.

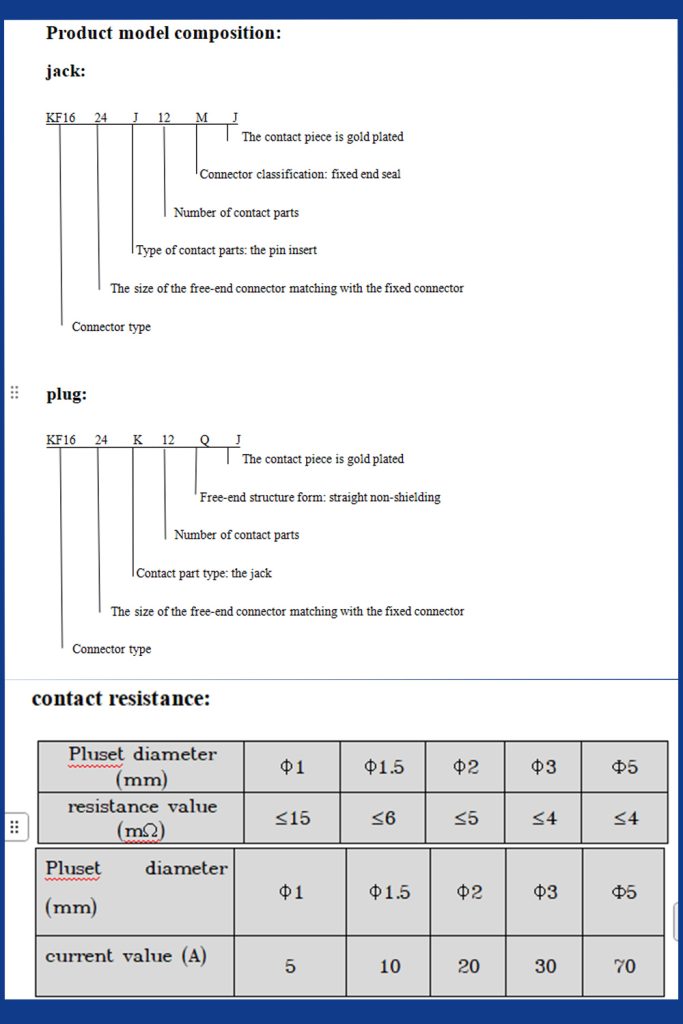

Key Performance Considerations

Performance metrics for vacuum feedthrough connectors include leak rate, voltage rating, current capacity, and temperature tolerance. Leak rates are typically measured in helium equivalent units, with high-quality feedthroughs achieving rates below 1×10⁻⁹ mbar·L/s. Electrical properties must align with application requirements, whether for low-power sensor signals or high-current loads. Temperature resilience is critical, as connectors may operate in cryogenic environments or near high-heat sources like plasma chambers. Additionally, connectors must resist degradation from radiation, chemical exposure, or particulate contamination. Manufacturers often subject feedthroughs to rigorous testing, including bake-out procedures, high-voltage stress tests, and long-term vacuum stability assessments to validate performance under simulated operational conditions.

Applications Across Industries

In semiconductor fabrication, vacuum feedthroughs enable power delivery and data transmission in deposition and etching systems. Particle accelerators and fusion reactors rely on them for diagnostic instrumentation and magnet control. Aerospace applications include satellite thrusters and space simulation chambers, where connectors must survive extreme temperature fluctuations and radiation. Medical devices like MRI machines and proton therapy systems utilize feedthroughs to maintain vacuum in superconducting magnet assemblies. Emerging applications include quantum computing systems, where ultra-high vacuum and low-noise electrical connections are paramount. The versatility of these components ensures their relevance in both established and cutting-edge technologies.

Installation and Maintenance Best Practices

Proper installation is crucial for vacuum feedthrough performance. Surfaces must be clean and free of scratches to prevent outgassing or leakage. Torque specifications for fasteners must be strictly followed to avoid damaging seals. During maintenance, connectors should be inspected for signs of arcing, discoloration, or physical damage. Baking procedures may be required to remove absorbed gases in high-vacuum systems. When replacing feedthroughs, compatibility with existing vacuum chamber materials and flange standards (e.g., CF, KF) is essential. Many modern connectors incorporate modular designs, allowing for easier upgrades or repairs without full system disassembly.

Future Trends and Innovations

Advancements in additive manufacturing and nanotechnology are enabling more compact, high-density feedthrough designs with integrated shielding and improved signal integrity. The demand for ultra-high vacuum (UHV) and extreme high vacuum (XHV) compatible connectors is driving the development of new sealing techniques and materials with lower outgassing rates. Researchers are exploring superconducting feedthroughs for quantum applications and smart connectors with embedded sensors for real-time performance monitoring. As industries push the boundaries of vacuum technology, electrical feedthroughs will continue to evolve, balancing miniaturization with enhanced reliability in increasingly complex operational environments.
